GLOBIX Hybrid Connectors are designed to integrate multiple transmission types within a single compact connector interface, including power, signal, coaxial, and data contacts. These connectors are widely used in applications requiring high integration density, reliable transmission performance, and reduced cable complexity.
By combining different contact configurations into one connector system, hybrid connectors help optimize installation space, simplify cable management, and improve overall system reliability in demanding industrial and electronic environments.
✔ Multi-function integrated connection solution
✔ Power + signal + coaxial mixed contact design
✔ Compact and space-saving structure
✔ Stable transmission performance
✔ Reliable push-pull or circular locking system
✔ Optional EMC shielding structure
✔ High mating durability
✔ Custom cable assembly support
✔ OEM / ODM customization available
| Part Number | Product Photo | Description |

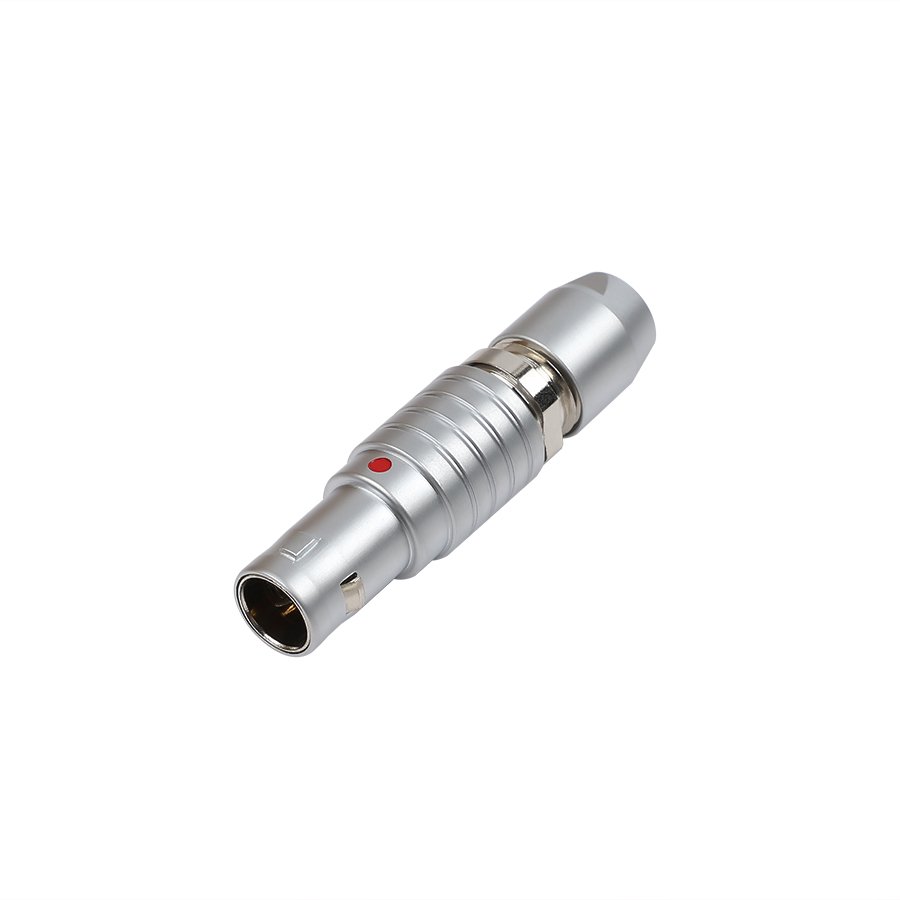

| INT-TGG |  | IP50 B series straight plug withcable collet INT-TGG 2B 4 Low voltage contacts +1high low voltage contact 2B 10 low voltage contacts + 1coaxial contact 3B 6 low voltage contacts + 2coaxial contacts |

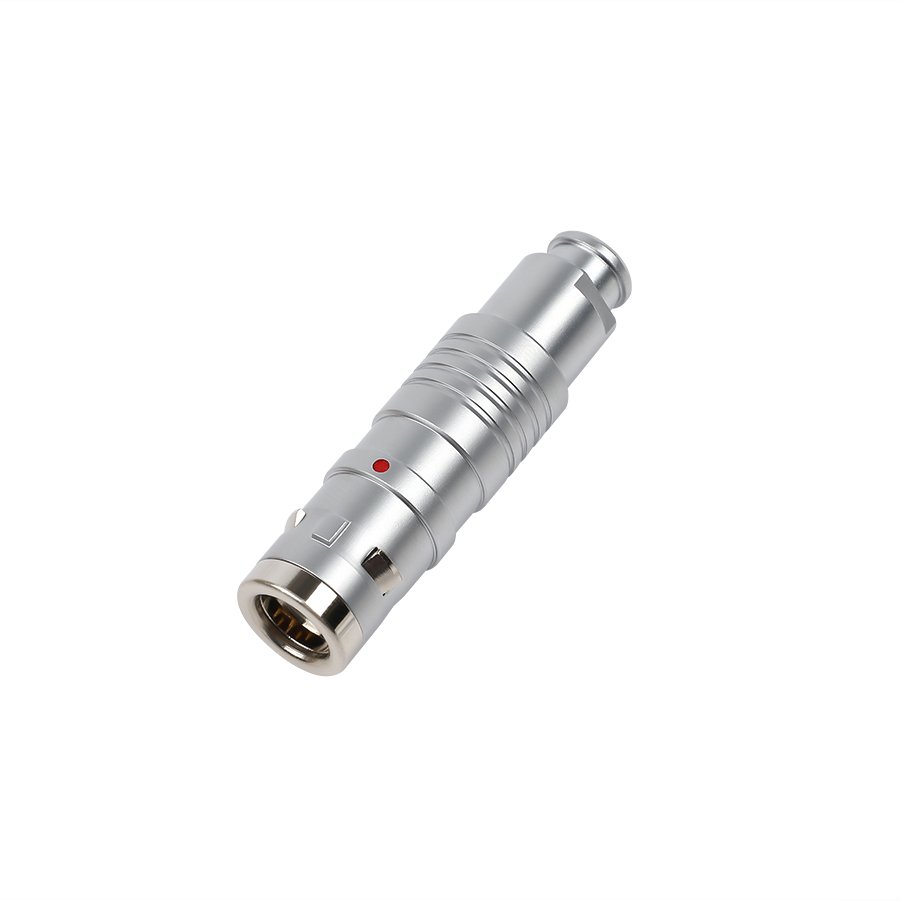

| INT-TGG(Z) |  | IP50 B series straight plug, nutfor fitting a bend relief, IP50 2B 4 Low voltage contacts +1high low voltage contact INT-TGG(Z) 2B 10 low voltage contacts + 1coaxial contact 3B 6 low voltage contacts + 2coaxial contacts |
Plug: GBX-HYB-TGG.2B.306+1C.CLAD72Z

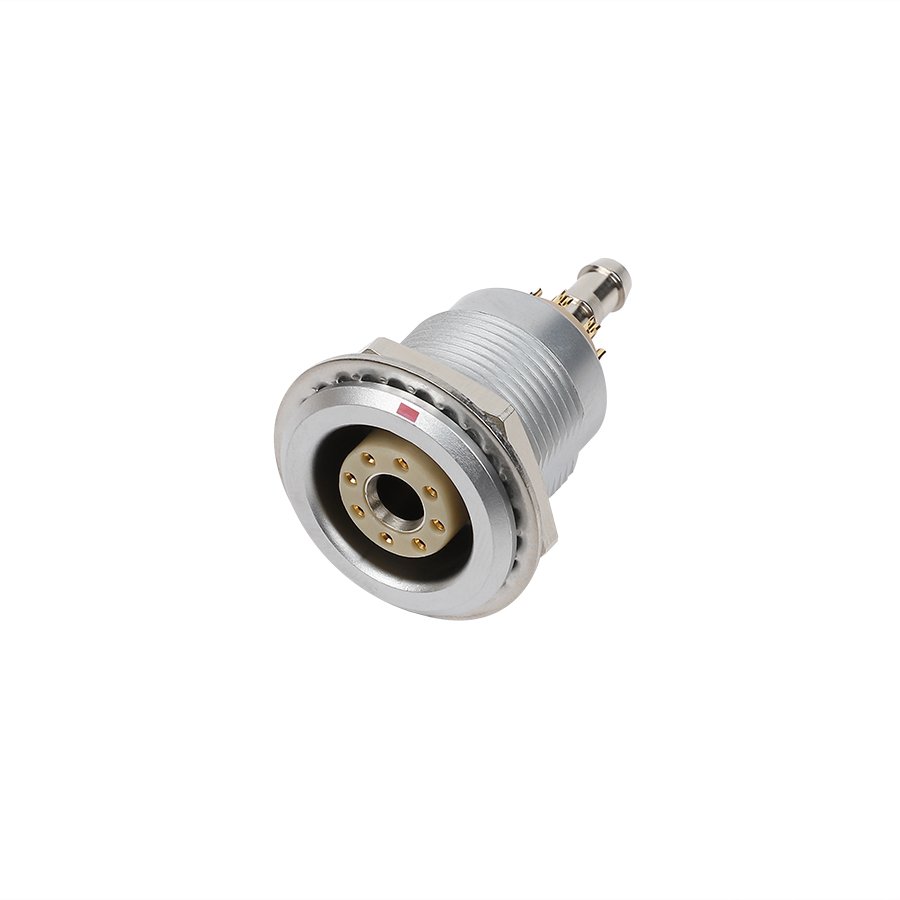

Fixed Socket: GBX-HYB-ZGG.2B.306+1C.CLL
Position | Example Code | Meaning |
1 | GBX-HYB | GLOBIX Hybrid Connector |
2 | TGG / ZGG | Housing Model |
3 | 2B | Series / Shell Size |
4 | 306+1C | Contact Configuration |
5 | C | Housing Material / Finish |
6 | L | Insulator Material |
7 | A / L | Contact Type |
8 | D | Collet Type |
9 | 72 | Cable Collet Size |
10 | Z | Variant for Bend Relief Nut |
Code | Description |
TGG | Straight Plug |
ZGG | Fixed Socket / Fixed Receptacle |
EGG | Fixed Receptacle |
ECG | Square Flange Receptacle |
PHG | Cable Plug with Bend Relief |
TEG | Waterproof Plug |
TNG | Lanyard Release Plug |
Code | Description |
00B | Ultra Compact |
0B | Compact Size |
1B | Standard Size |
2B | Medium Size |
3B | Large Size |
4B | Extra Large Size |
Code | Description |
C | Brass, Chrome Plated |
K | Brass, Black Chrome Plated |
N | Brass, Nickel Plated |
T | Stainless Steel |
L | Aluminum Alloy, Anodized |
Code | Description |
L | PPS |
P | PEEK |
Code | Description |
A | Male Solder Contacts |
L | Female Solder Contacts |
D | Male Straight PCB Contacts |
N | Female Straight PCB Contacts |
W | Male 90° PCB Contacts |
V | Female 90° PCB Contacts |
GBX-HYB-TGG.2B.306+1C.CLAD72Z means a 2B series straight plug hybrid connector with 6 standard contacts + 1 coaxial contact, chrome-plated brass housing, PPS insulator, male solder contacts, cable collet for 6.3–7.2 mm cable OD, with nut for bend relief.
Characteristics | Value | Standard |
Endurance: | >5000 cycles | IEC60512-5 test 9a |
Temperature range: | -40°C, +200°C | |
Humidity: | Up to 95% at 60°C | |
Resistance to vibrations | 15 g [10 Hz – 2000 Hz] | IEC 60512-4 test 6d |
Shock resistance | 100 g [ 6 ms] | IEC 60512-4 test 6c |
Salt spray corrosion test | >96 h | IEC 60512-6 test 11f |
Protection index (mated) | IP50 | IEC 60529 |
Climatical category | 55/175/21 | IEC 60068-1 |
Characteristics | Value | Standard | |
Shielding efficiency | at 10 MHZ | >75 dB | IEC 60619-1-3 |
at 1 GHz | >40 dB | IEC 60619-1-3 | |
A hybrid connector integrates multiple transmission types within one connector interface, including power, signal, coaxial, and data contacts. It helps reduce cable complexity and improve system integration in compact equipment.

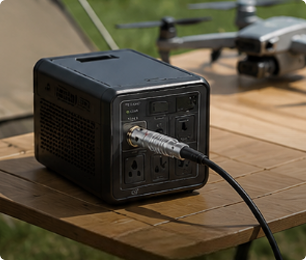

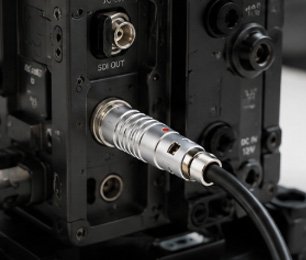

Hybrid connectors are widely used in medical equipment, industrial automation systems, robotics, aerospace electronics, test & measurement devices, imaging systems, and portable electronic equipment.
Yes. GLOBIX Hybrid Connectors can integrate power, signal, coaxial, and other mixed contact configurations within one compact connector solution.
Yes. Custom contact configurations are available according to different application requirements, including mixed power, signal, and coaxial layouts.
Yes. Waterproof hybrid connector solutions with IP67/IP68 protection are available for demanding industrial and outdoor environments.
Yes. GLOBIX provides complete cable assembly support, including overmolding, shielding solutions, custom cable lengths, and OEM labeling.
Depending on the application, GLOBIX Hybrid Connectors are available with push-pull self-latching systems or threaded circular locking systems.
Connector housings are typically manufactured from brass with chrome or nickel plating. Stainless steel and aluminum alloy options are also available for specific applications.
Standard operating temperature range is typically from -40°C to +150°C, depending on connector configuration and materials.
GLOBIX connectors are designed to support many standard industrial connector configurations and can be used for compatible replacement solutions in various applications.
Yes. We support OEM and ODM development, including customized connector structures, cable assemblies, shell finishes, and marking solutions.
To recommend the correct connector solution, please provide:
